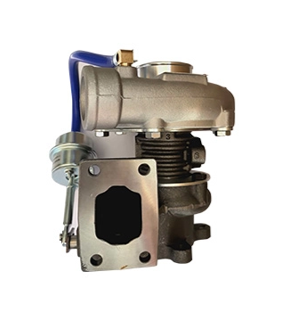

The TB28 turbocharger is a widely adopted wastegate turbocharger designed specifically for domestic four-cylinder diesel engines in China. As a proven and reliable solution in the commercial vehicle aftermarket, this turbocharger has become the industry standard for light-duty trucks, small cargo vehicles, agricultural machinery, and compact construction equipment. Engineered to replace original 4102 series turbochargers, it delivers exceptional performance while maintaining full compatibility with popular engine platforms.
Our TB28 turbochargers undergo rigorous quality testing to ensure they meet or exceed OEM specifications. Each unit is precision-manufactured using high-grade materials to withstand the extreme temperatures and pressures of diesel engine operation. With its robust construction and time-tested design, the TB28 turbocharger offers outstanding durability and long service life, making it the preferred choice for fleet operators, repair workshops, and equipment owners worldwide.

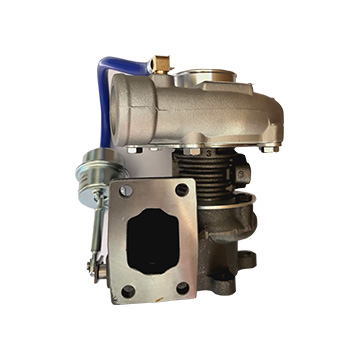

The silver-gray upper housing serves as the air compression chamber. Fresh ambient air enters through this housing and is compressed by the high-speed rotating compressor wheel before being delivered to the engine cylinders. This compression process significantly increases the volume of air available for combustion, directly boosting engine power output.

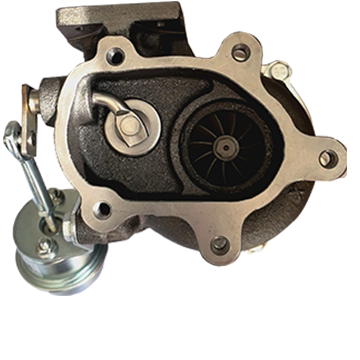

The cast iron lower housing acts as the power source for the entire system. High-temperature exhaust gases expelled from the engine flow through this housing, driving the turbine wheel at extremely high rotational speeds. This rotational energy is transferred through a common shaft to the compressor wheel, creating the turbocharging effect.
The silver device with a blue hose on the left side functions as a pressure safety valve. The blue hose transmits boost pressure signals to the wastegate actuator. When intake pressure exceeds safe limits, the wastegate valve opens to divert a portion of exhaust gases away from the turbine wheel, limiting its rotational speed and protecting both the engine and turbocharger from damage caused by overboost.
The middle section with cooling fins provides the core structural support for the turbocharger. It houses precision floating bearings that are lubricated and cooled by engine oil. The external cooling fins enhance heat dissipation, preventing thermal degradation of internal components and extending the service life of the turbocharger.
The TB28 turbocharger operates on the proven principle of "exhaust gas drives turbine → turbine drives compressor via common shaft". This efficient design allows engines to achieve significant performance improvements without increasing displacement:
By increasing the air supply to the combustion chamber, the TB28 turbocharger boosts engine power by more than 30%. This additional power translates to improved acceleration, better hill-climbing ability, and increased load-carrying capacity, making it ideal for commercial vehicles operating under heavy-duty conditions.
The turbocharger ensures more complete combustion of fuel by providing an optimal air-fuel mixture. This not only reduces black smoke emissions but also improves fuel economy by up to 15% compared to naturally aspirated engines. Over the lifespan of the vehicle, this translates to substantial fuel cost savings for operators.
By optimizing the combustion process, the TB28 turbocharger helps reduce harmful exhaust emissions including particulate matter and nitrogen oxides. This allows older diesel engines to meet stricter environmental regulations without requiring extensive modifications.
The TB28 turbocharger is primarily designed for domestic four-cylinder diesel engines produced by leading Chinese manufacturers. It is fully compatible with the following engine series:
Yunnei 4100, 4102, 4105, 4108, 4110
Xichai 4100, 4102, 4105, 4108, 4110
Chaochai 4100, 4102, 4105, 4108, 4110
Yuchai 4100, 4102, 4105, 4108, 4110
This wide compatibility makes the TB28 turbocharger suitable for a broad range of applications including light trucks, small delivery vehicles, agricultural tractors, harvesters, and compact construction equipment such as excavators and loaders.
Parameter | Specification |
|---|---|
Model | TB28 |
Type | Wastegate Turbocharger |
Application | Four-cylinder diesel engines |
Replacement | 4102 OEM part numbers |
Power Increase | ≥30% |
Fuel Efficiency Improvement | 10-15% |
Bearing Type | Floating bearing |
Lubrication | Engine oil |
Cooling System | Oil cooling + air cooling (fins) |
Material - Compressor Housing | Aluminum alloy |
Material - Turbine Housing | Ductile cast iron |
Material - Turbine Wheel | High-temperature alloy |
The TB28 design has been extensively field-tested over millions of operating hours in real-world conditions. Its simple, robust construction minimizes the risk of mechanical failure, ensuring reliable performance even in harsh operating environments.
As a standard design in the Chinese commercial vehicle industry, the TB28 turbocharger benefits from widespread availability of replacement parts. This ensures that maintenance and repairs can be performed quickly and cost-effectively, minimizing vehicle downtime.
The combination of competitive pricing, long service life, and low maintenance costs makes the TB28 turbocharger the most cost-effective solution for engine performance upgrades and replacements. The wastegate design further reduces the risk of costly engine damage due to overboost.
The integrated wastegate system is specifically calibrated to meet the variable operating conditions of civilian commercial vehicles. It provides smooth power delivery across the entire engine speed range, ensuring optimal performance in both urban and highway driving scenarios.
The TB28 turbocharger is compatible with most 4100, 4102, 4105, 4108, and 4110 series four-cylinder diesel engines manufactured by Yunnei, Xichai, Chaochai, and Yuchai. It is widely used in light trucks, agricultural machinery, and small construction equipment.
When properly installed and tuned, the TB28 turbocharger can increase engine power output by 30% or more. This significant power boost improves vehicle performance, especially when carrying heavy loads or climbing steep hills.
With proper maintenance, including regular oil changes and proper engine warm-up and cool-down procedures, a TB28 turbocharger can last between 80,000 and 120,000 kilometers. Using high-quality engine oil and replacing the air filter regularly will help extend its service life.
While it is possible for experienced mechanics to install the TB28 turbocharger, we recommend professional installation by qualified technicians. Proper installation is critical to ensure optimal performance and prevent premature failure. Incorrect installation can lead to oil leaks, boost leaks, or even catastrophic engine damage.
Common signs of a failing turbocharger include excessive smoke from the exhaust, loss of power, increased oil consumption, unusual whistling or grinding noises, and oil leaks around the turbocharger housing. If you experience any of these symptoms, we recommend having your turbocharger inspected by a professional as soon as possible.
