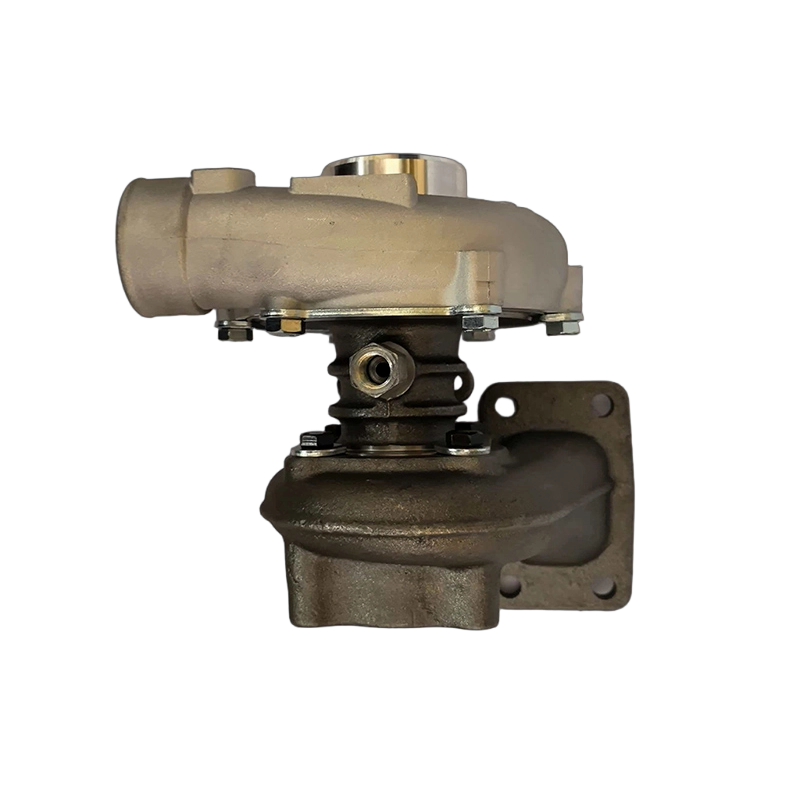

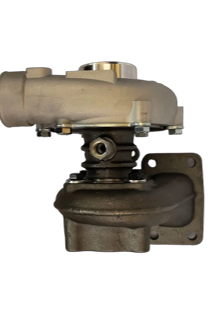

The OEM J65 turbocharger is a factory-matched boosting component specifically engineered for Weichai and Huafeng 4105 series inline four-cylinder diesel engines. This oil-cooled small turbocharger is purpose-built for non-road diesel engines, featuring a robust construction that excels in harsh working environments such as construction sites, agricultural fields, and mining operations.
As a critical performance upgrade for industrial equipment, the J65 turbocharger delivers reliable power enhancement while optimizing fuel efficiency. It is designed to meet the demanding requirements of continuous operation in heavy-duty applications, making it the preferred choice for equipment owners and fleet managers seeking to maximize productivity and minimize downtime.

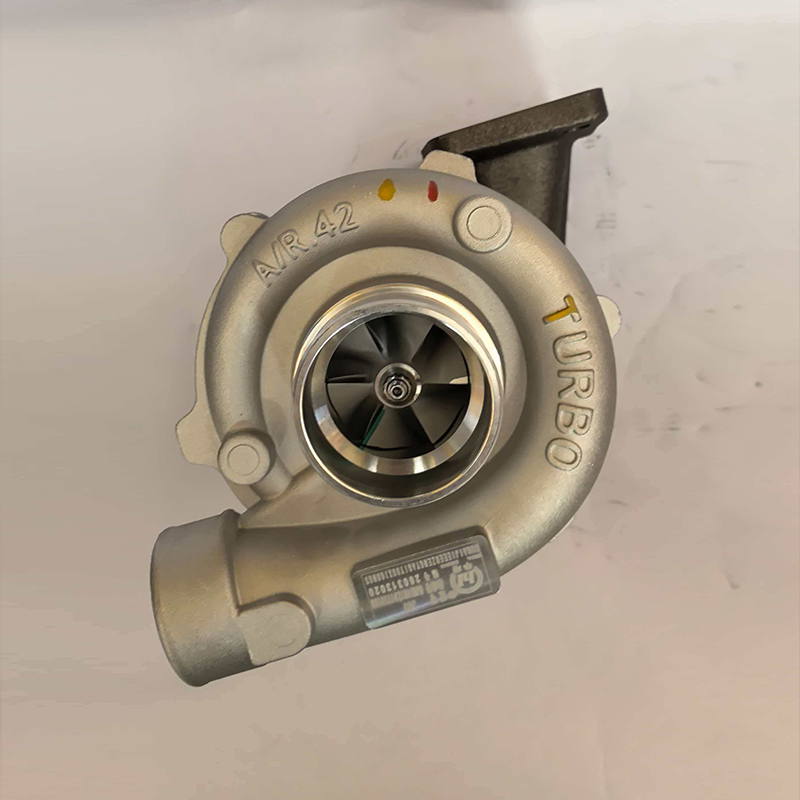

The compressor housing is manufactured from high-quality cast aluminum, achieving an optimal balance between lightweight design and excellent heat dissipation. Its air inlet interface is precisely matched to the intake system of 4105 series engines, ensuring seamless integration and maximum airflow efficiency. This design increases air intake volume by approximately 30%, allowing for more complete diesel combustion and improved engine performance.

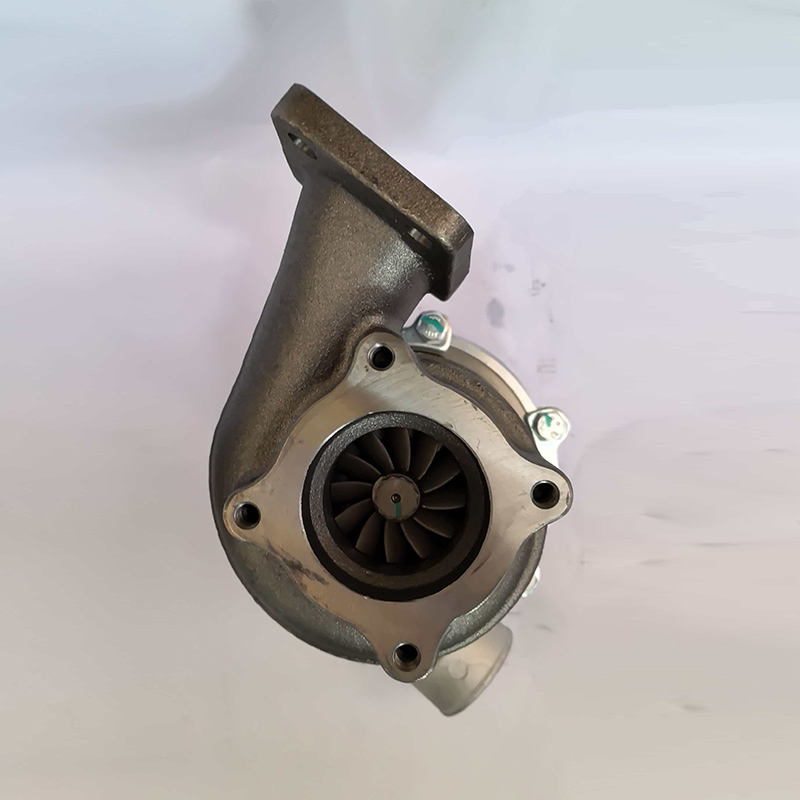

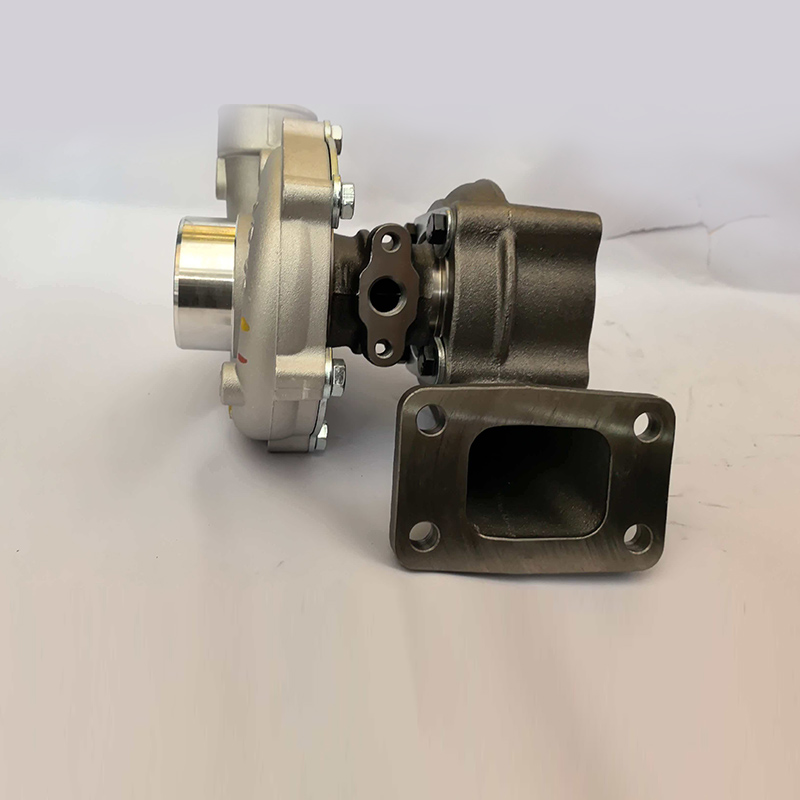

The turbine housing is constructed from high-temperature resistant cast iron, capable of withstanding exhaust gas temperatures exceeding 600°C. The square flange on the right side is precisely dimensioned to match the exhaust manifold interface of 4105 engines, ensuring a leak-free connection and efficient energy transfer from exhaust gases to the turbine wheel.
The center housing features a fully oil-cooled lubrication system, with a threaded oil inlet port that connects directly to the engine's lubrication system. This design provides continuous cooling and lubrication to the high-speed bearings, enabling reliable operation during extended working hours. The turbine shaft rotates at speeds exceeding 80,000 revolutions per minute, serving as the "power heart" of the entire turbocharger assembly.
The J65 turbocharger transforms the performance of 4105 series engines, increasing power output from the original 60-70 horsepower to 80-90 horsepower. This substantial power boost, combined with significantly improved torque, enables your equipment to handle heavy loads with ease, whether you are operating a loader on a construction site or a tractor in agricultural applications.
By promoting more complete combustion of diesel fuel, the J65 turbocharger reduces black smoke emissions and lowers fuel consumption compared to naturally aspirated engines of the same power rating. This translates to lower operating costs and reduced environmental impact, helping your business comply with increasingly stringent emission regulations.
Specifically designed for non-road equipment, the J65 turbocharger features enhanced resistance to impact and dust contamination compared to standard automotive turbochargers. Its rugged construction ensures reliable performance in dusty construction sites, muddy agricultural fields, and other challenging working conditions, extending the service life of both the turbocharger and your engine.
Parameter | Specification |
|---|---|
Turbocharger Model | J65 |
Compatible Engines | Weichai/Huafeng 4105 series (R4105ZD, R4105ZP, etc.) |
Compatibility | Also fits 4100/4102 engines on the same platform |
Cooling System | Full oil-cooled |
Power Increase | 60-70 HP → 80-90 HP |
Air Intake Improvement | Approximately 30% |
Maximum Exhaust Temperature Resistance | 600°C+ |
Maximum Turbine Shaft Speed | 80,000+ RPM |
Compressor Housing Material | Cast aluminum |
Turbine Housing Material | High-temperature cast iron |
Application Type | Non-road diesel engines |
The J65 turbocharger is widely used across various industrial sectors where reliable power and durability are essential. Its primary applications include:
Small loaders and construction machinery
Forklifts and material handling equipment
Agricultural tractors and farming machinery
Diesel generator sets
Other industrial equipment powered by Weichai 4105 series engines
This turbocharger is a direct replacement for the original equipment, ensuring perfect fitment and compatibility without any modifications required. It is compatible with all Weichai and Huafeng 4105 series inline four-cylinder diesel engines, including the popular R4105ZD and R4105ZP models, as well as 4100 and 4102 engines on the same platform.
The J65 turbocharger is specifically designed for Weichai and Huafeng 4105 series inline four-cylinder diesel engines, including models such as R4105ZD and R4105ZP. It is also compatible with 4100 and 4102 engines on the same platform.
Installing the J65 turbocharger will increase your engine's power output from 60-70 horsepower to 80-90 horsepower, with a corresponding increase in torque. It also improves fuel efficiency by approximately 10-15% and reduces black smoke emissions.
Yes, the J65 turbocharger is specifically engineered for non-road applications and features enhanced durability. It is resistant to impact and dust contamination, making it ideal for use in construction sites, agricultural fields, and mining operations.
The J65 turbocharger utilizes a full oil-cooled lubrication system, which relies on the engine's oil supply to cool and lubricate the high-speed bearings. This design ensures reliable operation during continuous heavy-duty use.
While experienced mechanics can install the J65 turbocharger, we recommend professional installation to ensure proper fitment, lubrication, and calibration. Correct installation is crucial for optimal performance and longevity of the turbocharger.
