The JMC 493 GT22 turbocharger (OEM part number E04933000001) is designed as a direct replacement for the original Garrett GT22 turbocharger fitted to JMC vehicles. It is perfectly matched to the JX493 engine, which is derived from the legendary Isuzu 4JB1 engine platform—renowned globally for its durability and low maintenance costs.
JMC 493: Refers to the JMC JX493 series 2.8L diesel engine, with power output ranging from 68kW to 85kW. This engine is the workhorse of China's light commercial vehicle market, powering millions of pickups and light trucks.
GT22: A medium-sized turbocharger model from Garrett, optimized for 2.5-3.0L diesel engines. It strikes an ideal balance between low-speed response and high-speed airflow, perfectly complementing the JX493 engine's power characteristics.

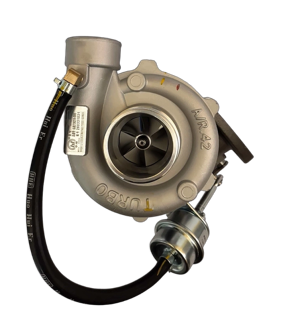

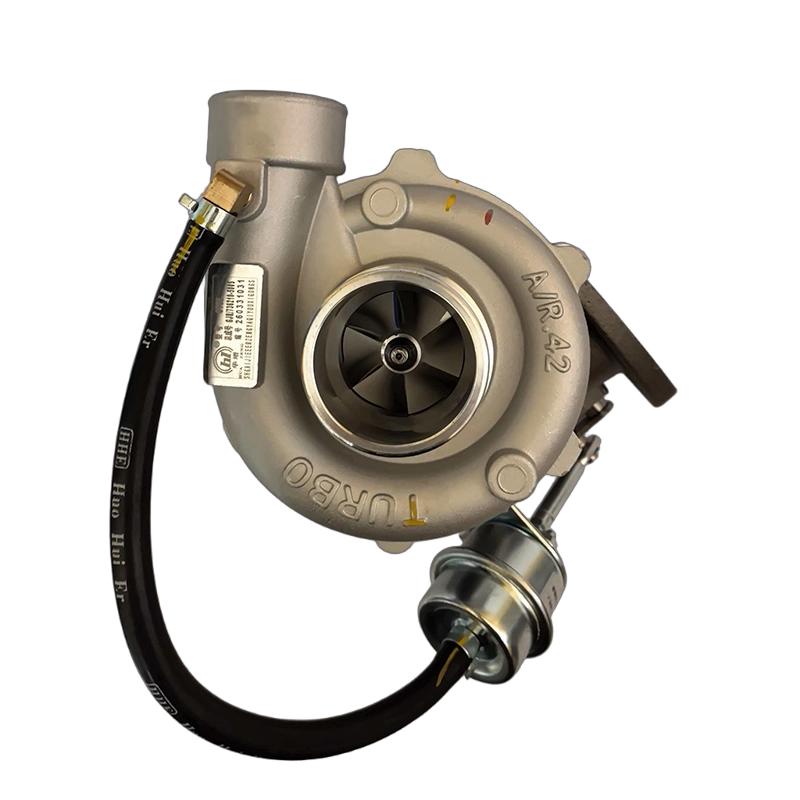

The compressor housing (front silver main body) is cast with "TURBO" lettering for easy identification and features a critical A/R ratio of 0.42. The A/R (Area/Radius) ratio is a key engineering parameter that directly affects turbocharger performance. A smaller A/R ratio provides faster low-speed spool-up and reduced turbo lag. The 0.42 specification is specifically optimized for the JX493 engine's low-end torque requirements, ensuring more direct power delivery during acceleration and low-speed heavy-load operations. The precision-machined compressor wheel efficiently compresses fresh air, increasing intake density and improving combustion efficiency.

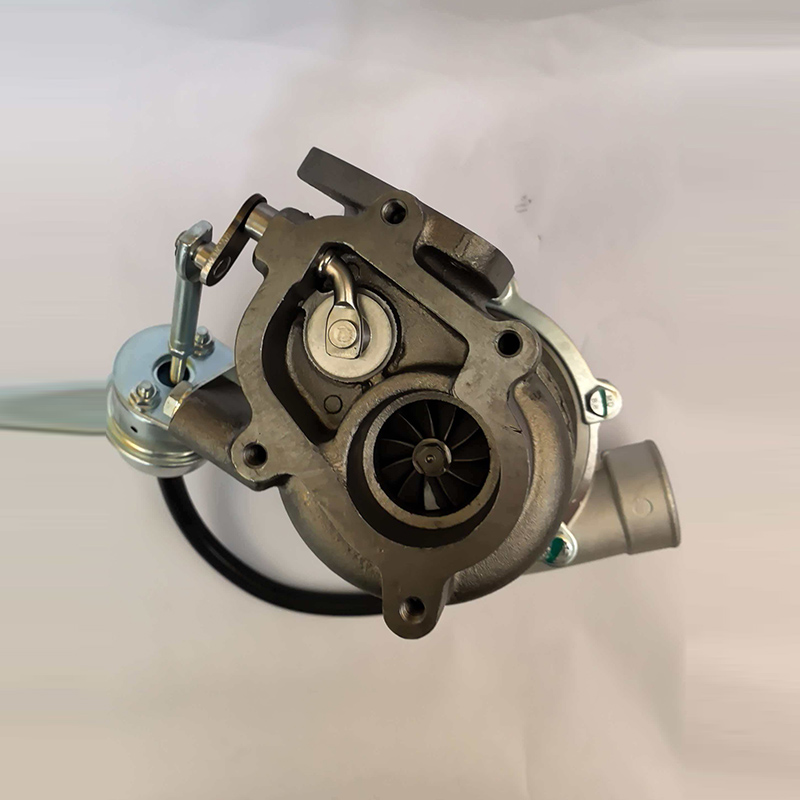

The right-side wastegate assembly with actuator rod acts as the turbocharger's "safety valve". This system consists of the wastegate valve, connecting rod, and pressure-driven actuator. When boost pressure exceeds the factory-set limit of 0.4-0.6 bar, compressed air from the compressor outlet drives the actuator through the control hose, opening the wastegate. This allows a portion of exhaust gases to bypass the turbine wheel, limiting turbine speed and preventing over-boost conditions that could damage the engine. This self-regulating system ensures consistent and safe operation under all load conditions.

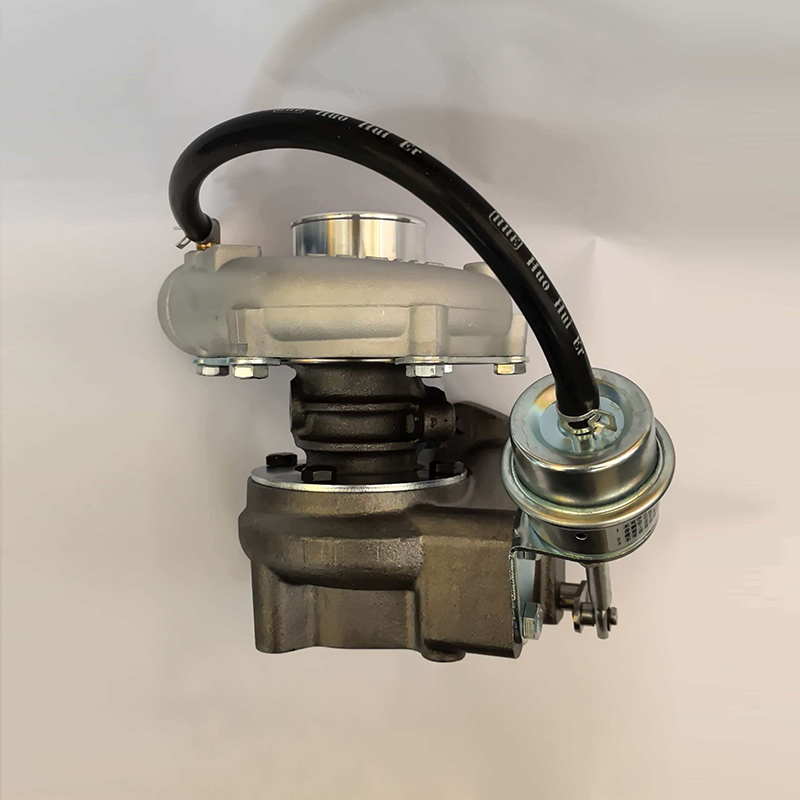

The black control hose on the left side is the pressure signal line for the wastegate actuator. It features brand identification and is manufactured from high-temperature resistant materials to withstand the harsh engine bay environment. One end connects to the compressor outlet to measure boost pressure, while the other end drives the wastegate actuator, creating a closed-loop pressure control system. The metal nameplate on the compressor housing displays the part number and model information, serving as the exclusive identification mark for JMC 493 engine turbochargers and ensuring compatibility with different emission standards (Euro III/Euro IV).
Parameter | Specification |
|---|---|
OEM Part Number | E04933000001 |
Turbocharger Model | GT22 |
Compatible Engine | JMC JX493 2.8L Inline 4-Cylinder Diesel |
A/R Ratio | 0.42 |
Factory Boost Pressure | 0.4-0.6 bar |
Power Range | 68-85 kW |
Actuator Type | Pressure-Driven Wastegate |
Emission Compatibility | Euro III, Euro IV |
Application | Light Commercial Vehicles |
This JMC 493 GT22 turbocharger is designed for a wide range of JMC light commercial vehicles, including:
JMC Baodian pickup trucks
JMC Shunda light trucks
JMC Kaiyun light trucks
Other vehicles equipped with the JX493 diesel engine
It is ideal for use in urban delivery, construction, agriculture, and general cargo transportation applications where reliable performance and low operating costs are essential.
Our turbochargers are manufactured to strict OEM specifications, ensuring perfect fitment and performance identical to the original part. Each unit undergoes rigorous quality testing, including balance testing, pressure testing, and performance verification, to guarantee long service life and reliable operation. We offer competitive pricing for wholesale customers and bulk orders, making us the trusted supplier for automotive parts distributors and repair workshops worldwide.
This turbocharger is specifically designed for JMC vehicles equipped with the JX493 2.8L diesel engine, including the Baodian pickup, Shunda light truck, and Kaiyun light truck. It is compatible with both Euro III and Euro IV emission versions.
With proper maintenance, including regular oil changes and using high-quality engine oil, this turbocharger can provide 100,000-150,000 kilometers of reliable service.
Common signs of a failing turbocharger include excessive smoke from the exhaust, loss of power, increased oil consumption, and unusual whistling or grinding noises from the engine bay.
This is a high-quality replacement turbocharger manufactured to OEM specifications, providing equivalent performance and durability to the original Garrett unit at a more competitive price.
If you are looking for a reliable and cost-effective replacement turbocharger for your JMC light commercial vehicle, the JMC 493 GT22 turbocharger (E04933000001) is the perfect choice. Contact us today for more information about pricing, bulk order discounts, and shipping options.
