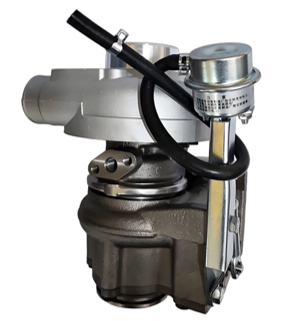

The Holset HX30W turbocharger is a precision-engineered boosting component designed exclusively for Cummins 4BT series diesel engines. As a direct replacement for OEM part numbers 4040353, 4040382 and 4045759, this turbocharger delivers factory-matching performance and reliability. It has become the industry standard upgrade for commercial vehicle fleets, construction equipment operators and power generation facilities seeking to enhance engine efficiency and power output.
The HX30W is purpose-built to integrate seamlessly with Cummins 4-cylinder, 3.9L displacement diesel engines. This dedicated design ensures perfect fitment, optimal airflow matching and maximum power transfer. Unlike universal turbochargers that require extensive modifications, our HX30W units bolt directly onto existing engine mounts, minimizing installation time and reducing the risk of compatibility issues.
Upgrading to the HX30W turbocharger transforms the naturally aspirated 4BT engine into a high-performance powerplant. Users can expect a 30%+ increase in horsepower and torque, resulting in improved acceleration, better load-carrying capacity and enhanced overall vehicle performance. Additionally, the efficient compression design optimizes fuel combustion, reducing fuel consumption by up to 15% and lowering harmful exhaust emissions to meet modern environmental standards.

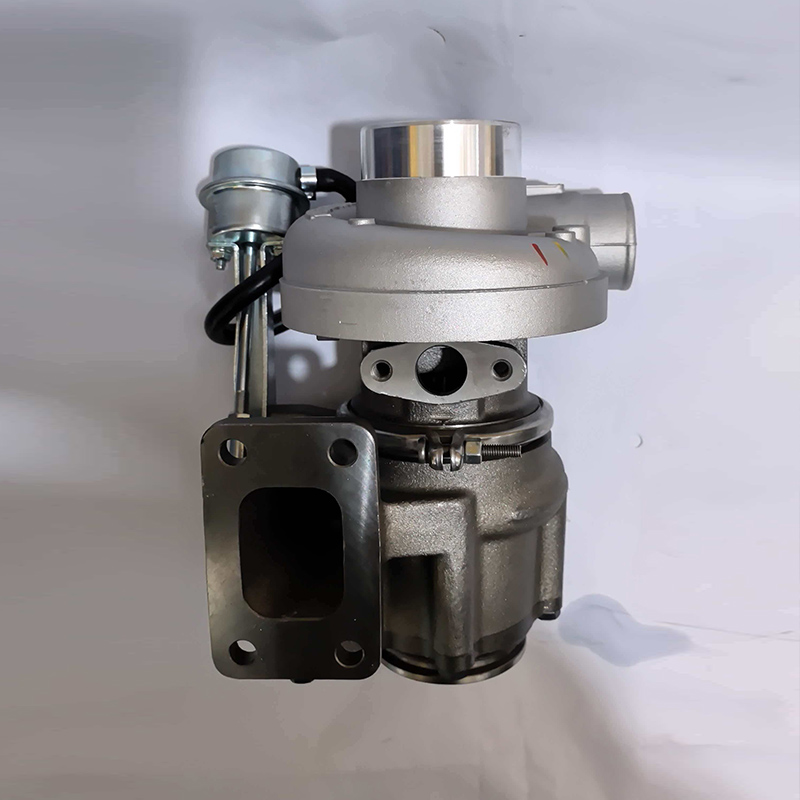

The HX30W turbocharger features a robust two-part construction that combines lightweight materials with heavy-duty durability, making it ideal for demanding commercial applications.

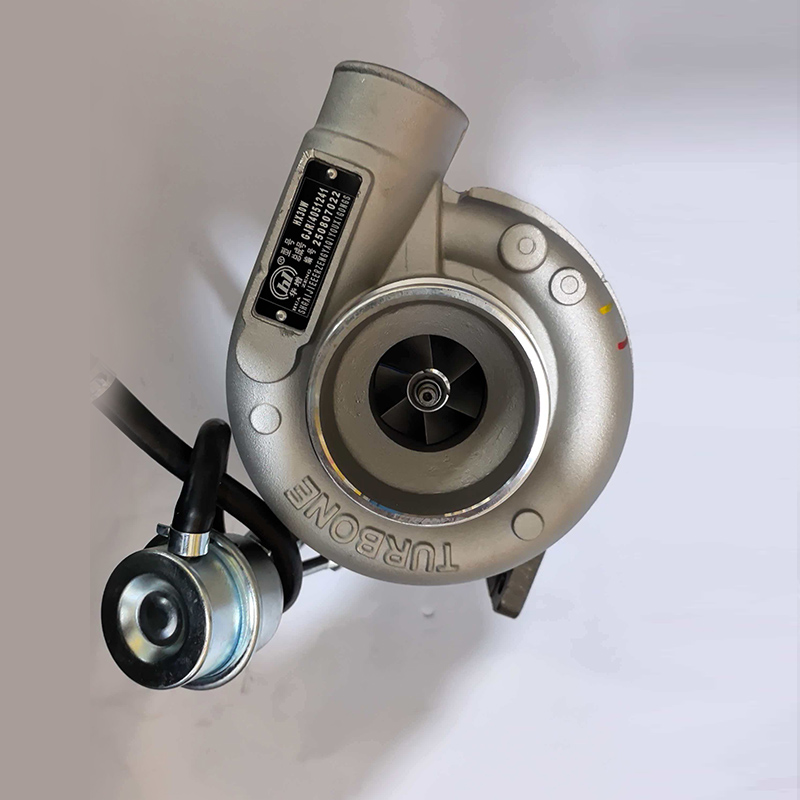

Compressor Housing: Manufactured from high-grade aluminum alloy, the upper compressor housing draws in fresh ambient air and compresses it before delivering it to the engine cylinders. The circular inlet and curved outlet ports are precision-machined to minimize airflow resistance and maximize efficiency.

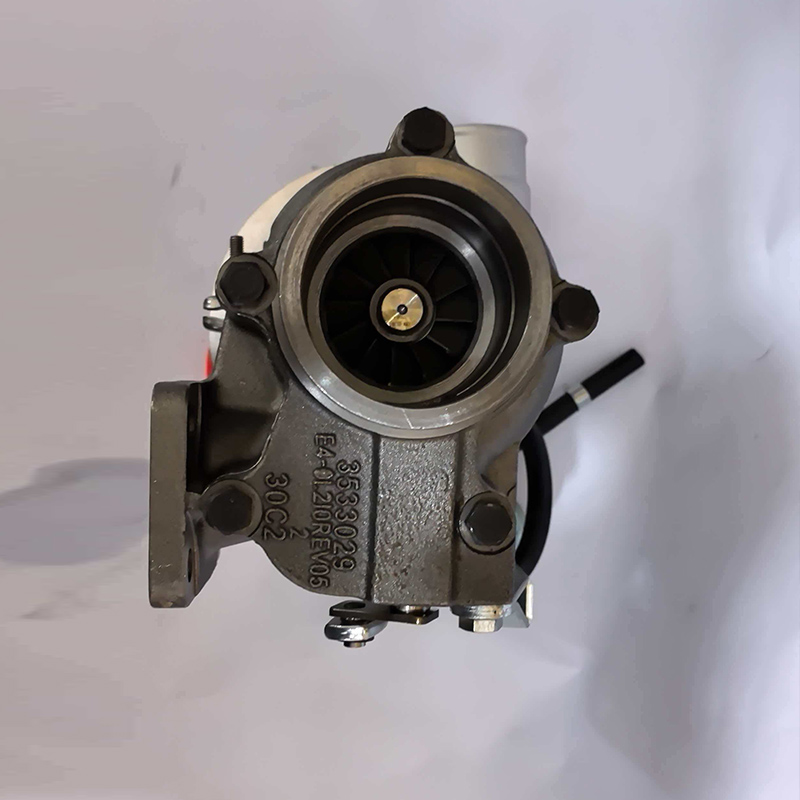

Turbine Housing: Constructed from heat-resistant cast iron, the lower turbine housing withstands extreme exhaust gas temperatures up to 750°C. It channels exhaust gases to drive the turbine wheel, which spins at speeds exceeding 120,000 RPM to power the compressor.

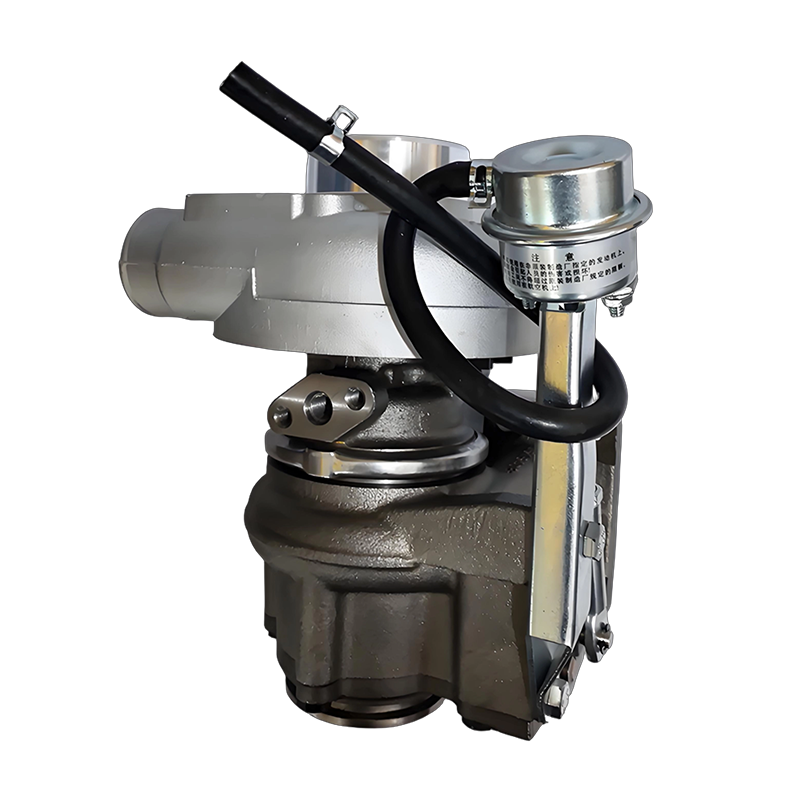

The HX30W incorporates a reliable pneumatic wastegate system consisting of a silver actuator and metal linkage arm mounted on the side of the turbocharger. A black rubber hose connects the actuator to the compressor outlet, using boost pressure to regulate valve operation. When engine speed or boost pressure exceeds safe limits, the wastegate opens, allowing a portion of exhaust gases to bypass the turbine wheel. This prevents over-boosting, protects the engine and turbocharger from damage, and ensures consistent performance across all operating conditions.
Located between the compressor and turbine housings, the central flange features dedicated oil inlet and return ports. The high-speed turbine shaft relies on a continuous supply of pressurized engine oil for lubrication and cooling. Proper oil maintenance is critical to turbocharger longevity, as insufficient lubrication is the leading cause of premature failure.
Parameter | Specification |
|---|---|
Model | HX30W |
Compatible Engine | Cummins 4BT 3.9L Diesel |
OEM Part Numbers | 4040353, 4040382, 4045759 |
Compressor Housing Material | Aluminum Alloy |
Turbine Housing Material | High-Temperature Cast Iron |
Maximum Boost Pressure | 1.2 bar |
Maximum Turbine Speed | 120,000 RPM |
Actuator Type | Pneumatic Wastegate |
Lubrication | Engine Oil Fed |
Installation | Direct Bolt-On Replacement |
The HX30W turbocharger is widely used across multiple commercial sectors where reliable diesel power is essential. Primary applications include:
Light commercial trucks and delivery vehicles
Construction equipment including excavators, loaders and bulldozers
Agricultural machinery such as tractors and harvesters
Stationary power generators and backup power systems
Marine propulsion systems for small vessels
Our HX30W turbochargers are manufactured to strict OEM specifications, ensuring identical performance and durability to the original Holset units. Each unit undergoes rigorous quality testing including balance verification, pressure testing and performance validation before shipment. We offer comprehensive technical support to assist with installation and troubleshooting, and all our turbochargers come with a standard 12-month warranty. For commercial fleet operators and equipment maintenance providers, we offer competitive pricing on bulk orders and fast worldwide shipping to minimize downtime.
The HX30W turbocharger is specifically designed for Cummins 4BT 3.9L 4-cylinder diesel engines. It is a direct replacement for OEM part numbers 4040353, 4040382 and 4045759.
When properly installed and tuned, the HX30W turbocharger can increase engine power and torque by 30% or more compared to the naturally aspirated 4BT engine. Actual gains may vary depending on engine condition, fuel quality and tuning configuration.
The most important maintenance requirement is regular oil changes using high-quality diesel engine oil. We recommend changing the oil every 5,000-7,500 kilometers and replacing the oil filter at each service. Additionally, inspect the air filter regularly and replace it when dirty to prevent debris from entering the turbocharger.
With proper maintenance and regular oil changes, the HX30W turbocharger can last as long as the engine itself, typically 300,000-500,000 kilometers. Premature failure is almost always caused by insufficient lubrication, contaminated oil or foreign object damage.
