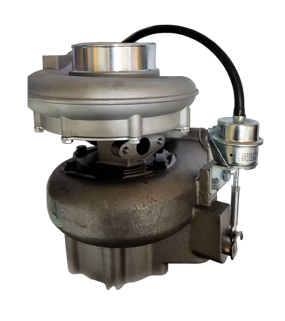

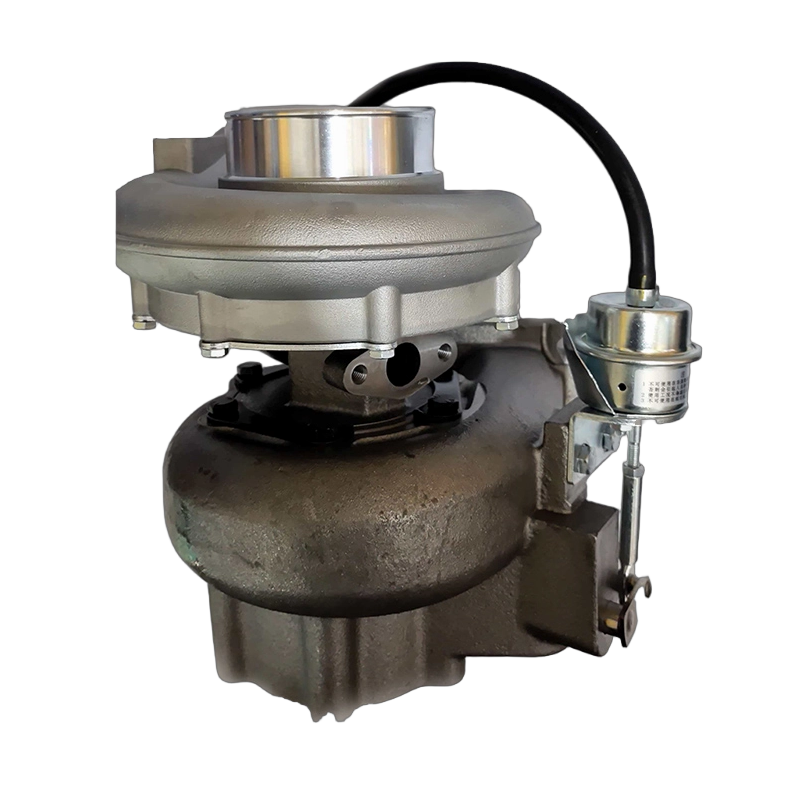

The GTA42 turbocharger features a robust three-module construction that optimizes performance and durability. The upper silver-gray compressor housing contains a precision-machined aluminum compressor wheel that draws in and compresses fresh intake air, increasing air density for more efficient combustion. The lower dark cast iron turbine housing houses a high-temperature resistant turbine wheel that harnesses exhaust gas energy to drive the compressor assembly. The right-side wastegate actuator assembly, connected via a black pressure hose, precisely regulates boost pressure to protect both the engine and turbocharger from overboost conditions.
At the heart of the unit lies the intermediate bearing housing, which incorporates high-speed floating bearings and integrated oil lubrication and cooling channels. This critical component ensures smooth operation at rotational speeds exceeding 100,000 RPM while maintaining optimal operating temperatures even under continuous heavy load conditions.
This GTA42 turbocharger is manufactured to exact Weichai OEM specifications, ensuring a perfect fit and seamless integration with P12 series engines. No modifications or additional calibration are required during installation, significantly reducing downtime and labor costs. All mounting points, flange dimensions, and connection interfaces match the original equipment precisely, making it an ideal replacement for failed or worn factory turbochargers.
By compressing intake air and delivering more oxygen to the combustion chamber, the GTA42 turbocharger increases the power and torque output of Weichai P12 engines by up to 40% compared to naturally aspirated configurations. This translates to improved acceleration, better hill-climbing ability, and increased load-carrying capacity for heavy-duty vehicles and equipment.
The efficient forced induction system optimizes the air-fuel mixture, resulting in more complete combustion and reduced fuel consumption by up to 15% under typical operating conditions. Additionally, the precise boost control provided by the wastegate actuator helps maintain compliance with modern emissions standards without sacrificing performance.
Constructed from premium materials including heat-resistant cast iron for the turbine housing and high-strength aluminum for the compressor wheel, the GTA42 turbocharger is designed to withstand extreme operating temperatures ranging from 600°C to 800°C in the turbine section. The robust bearing system and advanced sealing technology ensure reliable performance even in dusty, dirty, and high-vibration environments commonly encountered in construction and mining applications.
Parameter | Specification |
|---|---|
Turbocharger Model | GTA42 |
Compatible Engine | Weichai P12 Series 12L Diesel Engines |
OEM Part Numbers | 612640110348, 612640110581, 612640110258 |
Compressor Wheel Material | High-Strength Aluminum Alloy |
Turbine Housing Material | Heat-Resistant Ductile Cast Iron |
Bearing Type | Floating Bearing System |
Actuator Type | Pneumatic Wastegate Actuator |
Maximum Boost Pressure | 2.5 bar |
Maximum Exhaust Gas Temperature | 800°C |
Installation | Direct Bolt-On Replacement |
Warranty Period | 18 Months |
The GTA42 turbocharger is widely used in heavy-duty commercial vehicles powered by Weichai P12 engines, including long-haul tractors, dump trucks, concrete mixers, and refuse collection vehicles. Its reliable performance and durability make it the preferred choice for fleet operators who depend on their vehicles for daily operations.
This turbocharger is also extensively utilized in construction and mining equipment such as wheel loaders, excavators, bulldozers, and road rollers. These applications demand exceptional torque at low engine speeds and reliable operation in harsh environments, requirements that the GTA42 turbocharger is specifically designed to meet.
The GTA42 turbocharger is specifically designed for Weichai P12 series 12-liter diesel engines. It is compatible with all P12 engine variants used in heavy-duty commercial vehicles and industrial equipment.
Yes, this GTA42 turbocharger is manufactured to exact OEM specifications and is a direct bolt-on replacement for the listed Weichai part numbers. No modifications or additional calibration are required for installation.
All our GTA42 turbochargers come with an 18-month comprehensive warranty against manufacturing defects. This warranty covers both parts and labor for qualified installations performed by certified technicians.
The pneumatic wastegate actuator monitors boost pressure from the compressor outlet. When boost pressure exceeds the predetermined limit, the actuator opens the wastegate, allowing a portion of the exhaust gas to bypass the turbine wheel. This prevents overboost, protects the engine from damage, and optimizes low-end torque response while reducing turbo lag.
