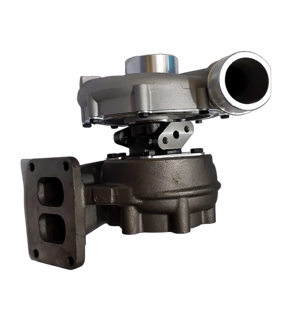

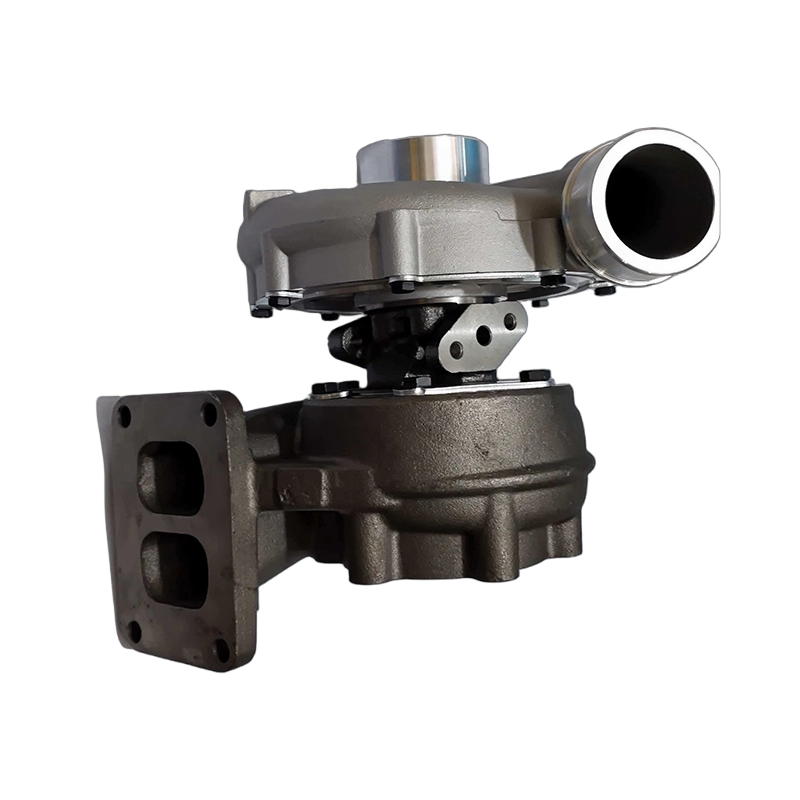

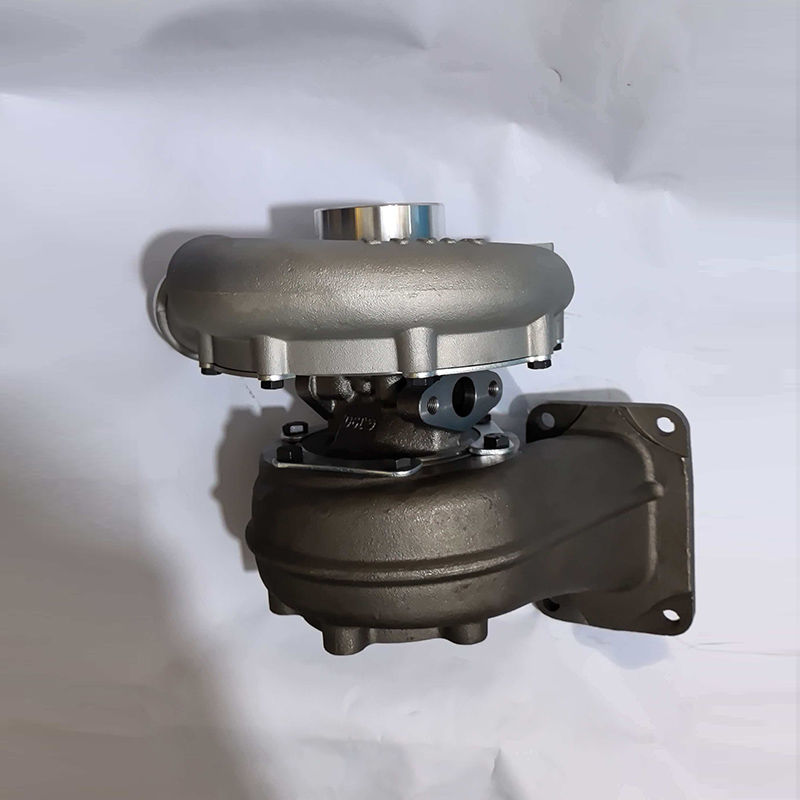

The GJ90B turbocharger is a high-performance exhaust gas turbocharger specifically engineered for Weichai WD615 series diesel engines, OEM part number 61560113227. As a classic and proven boosting component in the heavy-duty industry, this turbocharger delivers reliable power enhancement and fuel efficiency improvements for heavy-duty diesel trucks and construction machinery. Manufactured to strict original equipment specifications, it provides a direct drop-in replacement that requires no additional calibration, minimizing installation time and ensuring seamless integration with your engine system.

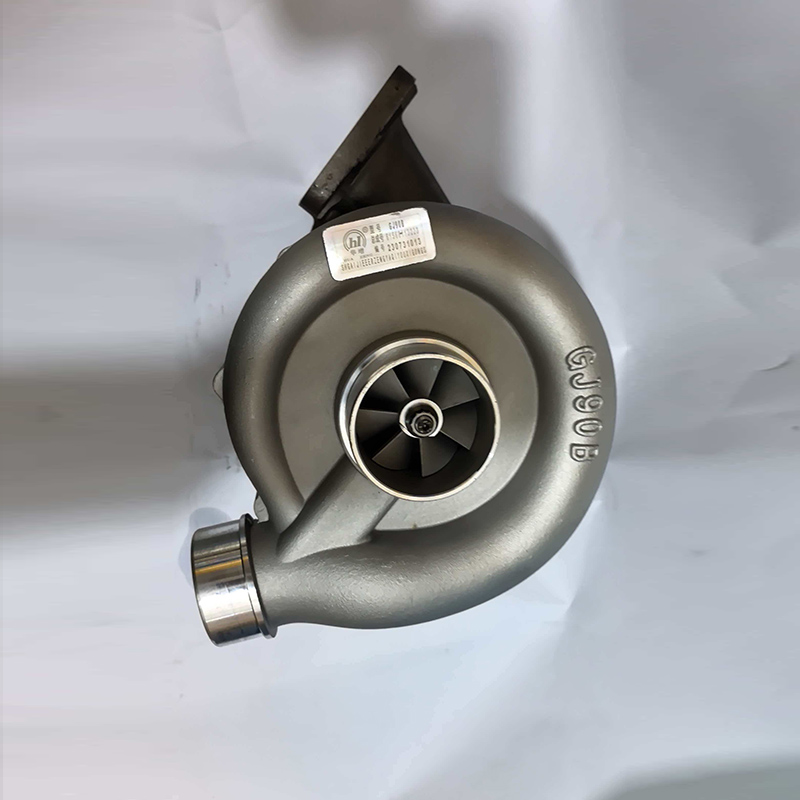

Constructed from high-grade aluminum alloy, the compressor housing features a circular outlet that connects directly to the engine intake manifold and a top inlet that attaches to the air filter system. The internal compressor wheel is driven by the turbine shaft, compressing fresh intake air to significantly increase air density entering the combustion chambers. This allows the engine to burn more fuel efficiently, resulting in substantial gains in horsepower and torque without increasing engine displacement.

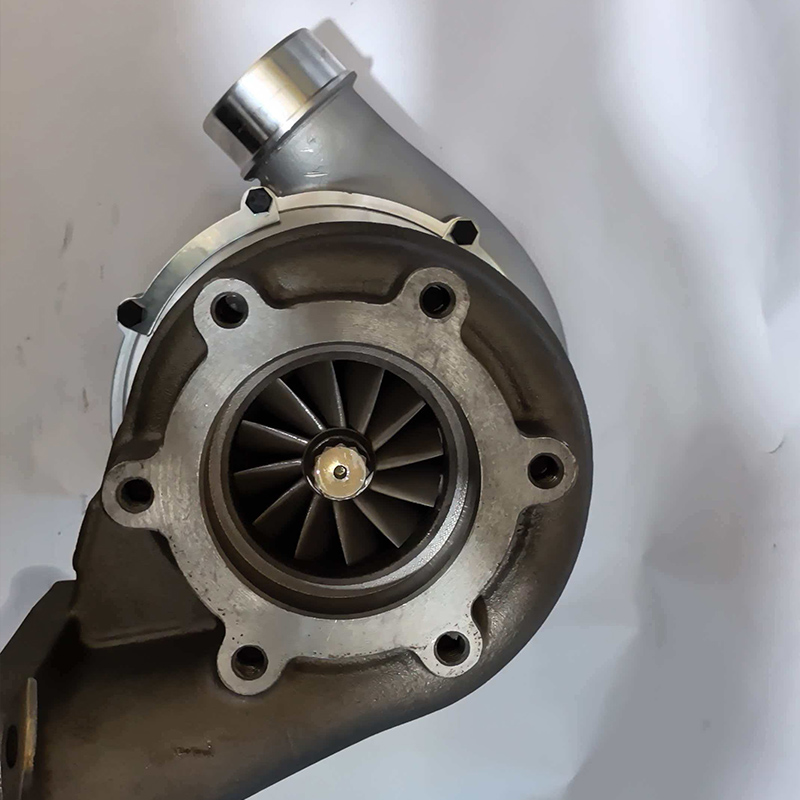

Fabricated from heat-resistant cast iron, the turbine housing incorporates a dual-port flange on the left side that connects directly to the engine exhaust manifold. This robust construction enables it to withstand the extreme temperatures and corrosive properties of diesel exhaust gases. The internal turbine wheel is driven by high-pressure exhaust gases, rotating at speeds of up to tens of thousands of revolutions per minute to power the compressor wheel on the same shaft.
The intermediate housing serves as the critical connection between the compressor and turbine sections, housing the precision-machined bearing system that supports the high-speed rotating shaft. This assembly also integrates a dedicated lubrication and cooling circuit, ensuring continuous oil flow to the bearings to prevent overheating and premature component failure even under prolonged heavy-load operation.
Parameter | Specification |
|---|---|
Model | GJ90B |
OEM Part Number | 61560113227 |
Compatible Engine | Weichai WD615 Series |
Turbo Type | Wastegate Turbocharger |
Compressor Housing Material | High-Grade Aluminum Alloy |
Turbine Housing Material | Heat-Resistant Cast Iron |
Installation | Direct Drop-In Replacement |
Calibration Required | None |
Warranty Period | 18 Months |
The GJ90B turbocharger is designed for use with Weichai's legendary WD615 inline six-cylinder diesel engine, one of the most widely used powerplants in heavy-duty applications across Asia and beyond. This turbocharger is compatible with:
Steyr series heavy-duty trucks
5-ton wheel loaders from leading manufacturers including LiuGong, XCMG, and SDLG
Various construction machinery equipment
Marine power applications
While the GJ90B is optimized for earlier and lower-power versions of the WD615 engine, it shares identical interface dimensions and mounting specifications with the GJ90C turbocharger, making them interchangeable in most applications. The GJ90C variant is typically specified for higher-tuned WD615 engines found in loader applications.
Investing in a high-quality GJ90B replacement turbocharger delivers significant operational and financial advantages for commercial fleet operators and heavy equipment owners. The "waste energy recovery" principle of turbocharging allows your engine to produce more power while maintaining or improving fuel efficiency, reducing operational costs over the lifespan of the equipment.
Our GJ90B turbochargers are manufactured to meet or exceed original equipment standards, ensuring long-term reliability and minimizing unplanned downtime. The direct replacement design eliminates the need for costly and time-consuming engine modifications or calibration, allowing your technicians to complete installations quickly and get your vehicles back on the road or job site.
Additionally, proper turbocharger maintenance helps extend the overall service life of your Weichai WD615 engine by ensuring optimal air-fuel mixture and combustion efficiency, reducing wear on critical engine components and lowering emissions.
The GJ90B and GJ90C turbochargers share identical physical dimensions, mounting interfaces, and overall structure. The primary difference lies in their wheel matching and flow characteristics. The GJ90C is calibrated for higher-power versions of the Weichai WD615 engine, typically used in wheel loader applications, while the GJ90B is optimized for earlier and lower-power engine configurations. Both models are fully interchangeable in most operating scenarios.
Yes, this GJ90B turbocharger is manufactured to exact original equipment specifications and is a direct drop-in replacement for the factory-installed turbocharger with OEM part number 61560113227. No modifications, adapters, or additional calibration are required for installation.
The Weichai WD615 engine is widely used in Steyr heavy-duty trucks, 5-ton wheel loaders from LiuGong, XCMG, SDLG and other major manufacturers, various construction machinery, and marine power applications. It remains one of the most common and reliable diesel engines in heavy-duty service today.
All our GJ90B turbochargers come with a comprehensive 18-month warranty against manufacturing defects. We stand behind the quality of our products and are committed to ensuring your complete satisfaction with your purchase.
