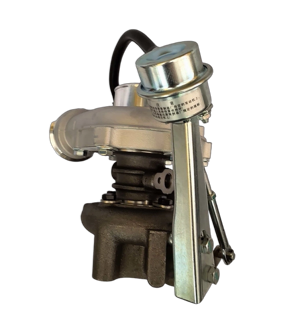

This K16 turbocharger is purpose-built to match the operating characteristics of FAW Xichai Deutz BF4M2012 engines, which are commonly found in light and medium-duty trucks and construction machinery. With a power output range of 110-130kW, it perfectly balances low-end torque delivery and high-speed stability, making it ideal for both urban delivery and long-haul transportation applications.
The K16 operates on the same fundamental principle as all turbochargers but with precision tuning for diesel engines. High-temperature exhaust gases from the engine spin the turbine wheel at speeds up to 120,000 revolutions per minute. This rotational energy is transferred through a common shaft to the compressor wheel, which draws in and compresses fresh air before delivering it to the engine cylinders. This process significantly increases engine air intake, resulting in improved power output, enhanced fuel efficiency, and reduced exhaust emissions.
The Deutz K16 turbocharger features flow and pressure ratio characteristics specifically calibrated for the BF4M2012 series engines, which meet China National III and IV emission standards. This precise engineering ensures seamless integration with the engine's electronic fuel injection system, delivering consistent performance across the entire operating range.
Equipped with a robust mechanical diaphragm wastegate system, this turbocharger provides reliable boost pressure control under all operating conditions. At low engine speeds, the wastegate remains closed to minimize turbo lag and improve throttle response. At high engine speeds, the wastegate opens to bypass excess exhaust gas, preventing over-boost conditions that could damage the engine. The simple mechanical design ensures long-term reliability and low maintenance costs, making it well-suited for the high-load, continuous operation requirements of commercial vehicles.
Manufactured to BorgWarner's strict original equipment standards, the K16 turbocharger features a high-temperature resistant turbine wheel and floating bearing system. These components are engineered to withstand the extreme exhaust temperatures and high rotational speeds typical of diesel engine operation. With proper maintenance, this turbocharger can deliver a service life of hundreds of thousands of kilometers, reducing total cost of ownership for commercial fleet operators.
Parameter | Specification |
|---|---|
Turbo Model | K16 (BorgWarner Series) |
OEM Part Numbers | 1118010-26V, 1118010-84D, 1118010-65D |
Compatible Engine | FAW Xichai Deutz BF4M2012 |
Engine Displacement | 4.0L |
Engine Configuration | Inline 4-cylinder diesel |
Power Range | 110-130kW |
Compressor Housing Material | Aluminum alloy |
Turbine Housing Material | High-temperature resistant cast iron |
Wastegate Type | Mechanical diaphragm |
Maximum Rotational Speed | 120,000 RPM |
The Deutz K16 turbocharger 1118010-26V is widely used in various commercial vehicles and equipment powered by FAW Xichai Deutz BF4M2012 engines:
FAW J6L, J6P and other light and medium-duty trucks
JAC and Dongfeng light trucks and cargo vehicles
Construction machinery including loaders and small excavators
Municipal service vehicles and utility trucks
The 1118010-26V K16 turbocharger is specifically designed for FAW Xichai Deutz BF4M2012 series 4.0L four-cylinder diesel engines. It is also compatible with other engine variants that use the same turbocharger mounting configuration and OEM part numbers.
This K16 turbocharger is manufactured to BorgWarner original equipment specifications, ensuring the same quality, performance, and durability as the turbocharger originally installed on your engine.
With proper engine maintenance, including regular oil changes and air filter replacements, the Deutz K16 turbocharger can provide a service life of 300,000-500,000 kilometers under normal commercial operating conditions.
Common signs of a failing turbocharger include excessive smoke from the exhaust, loss of engine power, increased oil consumption, unusual whistling or grinding noises from the engine bay, and increased boost pressure.
Yes, a properly functioning K16 turbocharger improves engine combustion efficiency by delivering the correct amount of compressed air to the cylinders. This results in better fuel economy and reduced exhaust emissions compared to a worn or damaged turbocharger.
